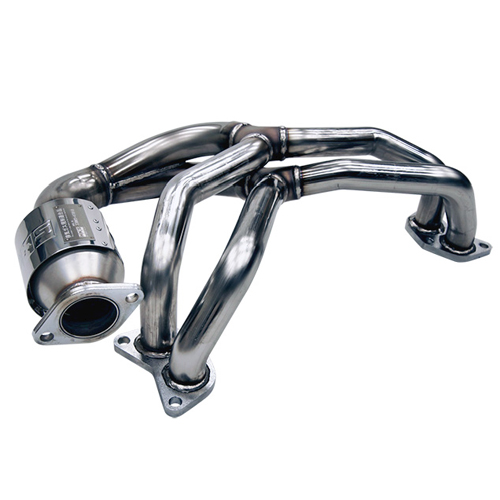

[TOYOTA GR86] HKS SUPER MANIFOLD with CATALYZER GT-SPEC

SUPER MANIFOLD with CATALYZER GT-SPEC
33005-AT010
상품 옵션
모델명
33005-AT010
적립금
1%
판매가격
1,990,000
      상품금액 원 + 기본옵션
      총 상품 금액 0
      특이사항
      ▶ 본 상품은 주문수입 상품으로 약 2~3주간의 배송일이 소요될 수 있습니다. ◀
      바로 구매하기 장바구니 관심상품
      본 상품은 주문수입 상품으로 약 2~3주간의 배송일이 소요될 수 있습니다.


      SUPER MANIFOLD with CATALYZER GT-SPEC













      ■FEATURE

      • HKS employs a low-density metal catalyst compared to the factory ceramic catalyst with a high density.
        It drastically decreases exhaust resistance.
      • It meets the emission control in Japan in 2018 by optimizing the blending ratio of the metals despite the low-density cells.
        Further, HKS obtains the certification for meeting the emission control from a third-party organization.
      • 4-2-1 equal-length design layout.
        The complete equal-length layout is achieved by careful studying, especially for the 4-part sections.
      • The flange at the cylinder head side employs the new design due to considering the structure of the stepped section when inserting the pipe.





      ■Catalyst Comparison





      ■Configurations





      ■Output Characteristic Comparison





       Max Output
      (kW/rpm)
      Max Torque
      (Nm/rpm)
      GT Manifold + HPSL2160.7/6900236/4500
      Stock + HPSL2158.6/6800230.7/3200
      Normal158/6900228.4/3300

      HPSL2: HKS Hi-Power SPEC-LII (Code No. 32016-AF101)
      GT Manifold: This product

      Note:
      The above graph comes from the in-house data.
      The value may vary depending on the vehicle or measurement equipment.



      The above shows the output measurement result from the combined use of the manifold and the muffler.
      Output improvement is confirmed at the whole range when using the HKS Hi-Power SPEC-L2 (32016-AF101) and this product together.
      Mainly the difference is noticeable in the middle range. However, using this product and the Hi-Power SPEC-L2 together drastically eliminates decreasing the torque at around 4,000 rpm.
      Also, power output and torque are improved by a maximum of 10.2 kW (13.9 PS), 22.5 Nm (2.3kgf・m) at 4,300 rpm when combined with the GT manifold and Hi-Power SPEC-L2 compared to the factory vehicle.
